| Brand Name : | shcommon |
| Model Number : | MV-8-4040G |
| Certification : | ISO 9001,ISO14001 |
| Price : | $24.00 |
| Payment Terms : | T/T, MoneyGram, D/P |
| Supply Ability : | 10000000PCS PER MONTH |
| Delivery Time : | 5-10DAYS |

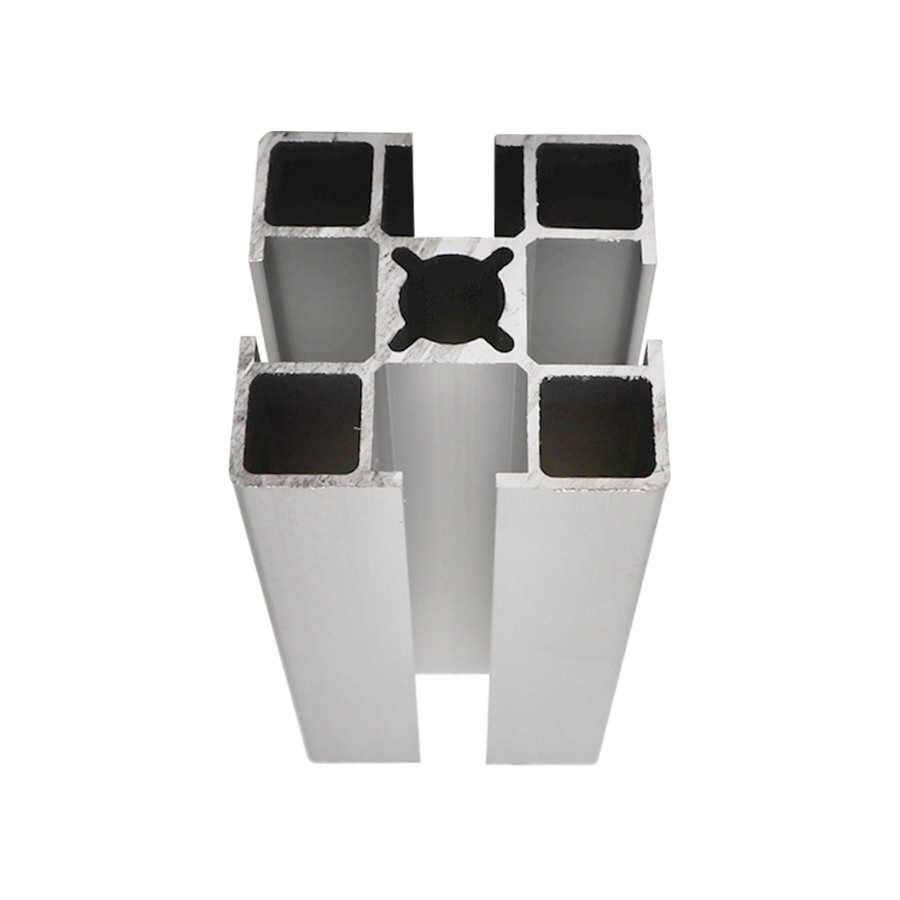

6000 Series 8kg/M T Slot Flat Anodizing Aluminum Profile
| Material | 6063-T5 aluminum alloy |
| Standard | European Standard |
| Alloy or not | Alloy |
| Size | 20mm*20mm |
| Surface treatment | Anodized |
| Hardness | 62HB |
| Tensile Strength | 180Mpa |
| Yield Strength | 127Mpa |
| Elasticities Modulus | 68600N/mm |
| Elongation | 8% |
| Oxide film thickness | Min,12hu |
Industrial aluminum profile system, also known as: industrial aluminum extrusion guide, industrial aluminum alloy profile. The industrial aluminum profile is an alloy material with aluminum as the main component. Aluminum bars are hot melted and extruded to obtain aluminum materials with different cross-section shapes, but the proportion of added alloys is different, so the mechanical properties and Application fields of the industrial aluminum profile are also produced differently. Generally speaking, industrial aluminum profiles refer to all aluminum profiles except for building doors and windows, curtain walls, indoor and outdoor decoration and building structures.
Applications
The general industrial aluminum profile is mainly used for industrial production and manufacturing, such as automatic mechanical equipment, framework of cover and customized mold opening according to the requirements of each company's mechanical equipment.
* Inquiry and consulting support.
* Various convenience and service, etc..
* View our Factory.
* We will provide technical guidance on use according to customer's requirements.
* We will guarantee the supply of maintenance parts.
Characteristics
After the surface of industrial aluminum profile is oxidized, its appearance is very beautiful and resistant to dirt. Once it is coated with oil, it is very easy to clean. When it is assembled into products, different specifications of profiles are used according to different load-bearing, and matching aluminum profile accessories are used. It does not need welding, is more environmentally friendly, and it is easy to install and disassemble, and it is light and easy to carry and move.
1) Light weight.
2) Strong, and high in strength.
3) Corrosion resistant, and non-sparking.
4) Easy to fabricate and assemble.
|
|
